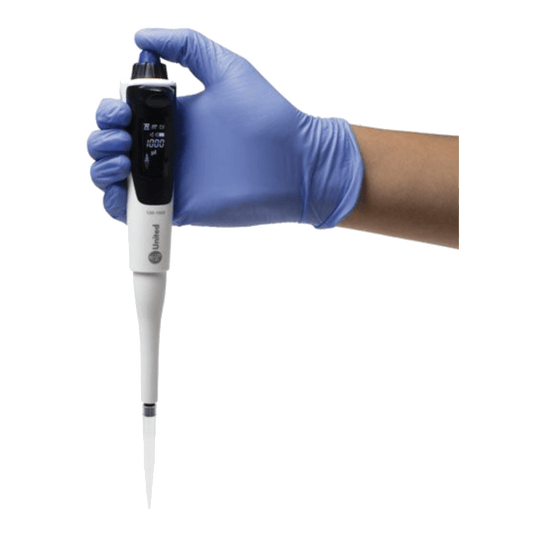

Versatile United Scientific™ Jupiter Electronic Pipettes provide fast, accurate results using three separate modes: pipetting, stepper dispensing, and diluting. Quickly select between modes, volumes, and speeds using easy two-knob operation and a digital display with clear status indicators. Choose the parameter to be adjusted using the blue knob, and dial in precise settings using the black function wheel.
Jupiter pipettes use a reliable, high-performance motor to deliver accuracy and repeatability. The ergonomic, lightweight design is comfortable to handle, and the electronic operation protects against repetitive motion injury. Three separate aspirating and dispensing speeds and up to ten stepper counts let users decide the frequency and quantity of samples to dispense. The lithium-ion battery in Jupiter is easily recharged using either the provided AC adapter or USB cable. Also includes a stand that can be mounted on a flat surface or wall.

Electronic operation saves time and reduces manual errors
Comfortable, lightweight design
Three operating modes with quick, accurate adjustments using two knobs
Calibrated and tested in compliance with ISO8655-6 / DIN12650

Item #	Volume Range	Graduation Interval	Test Volume	Accuracy				Compatible Tips
Item #	Volume Range	Graduation Interval	Test Volume	μl	%	Standard Deviation	Coefficient of Variation	Compatible Tips
UNEPV0010-P	0.5 - 10 μl	0.01 μl	10 μl	± 0.10 μl	± 1.00 %	0.05 μl	0.50 μl	10 μl
			1 μl	± 0.035 μl	± 3.50 %	0.05 μl	0.50 μl
UNEPV0050-P	5 - 50 μl	0.1 μl	50 μl	±0.40 μl	±0.80 %	0.15 μl	0.30 μl	200 ;300 ;350 μl
			5 μl	±0.15 μl	±3.00 %	0.125 μl	2.50 μl
UNEPV0300-P	30 - 300 μl	1 μl	300 μl	±1.8 μl	±0.60 %	0.60 μl	0.20 μl	300 ;350 μl
			30 μl	±0.9 μl	±3.00 %	0.21 μl	0.70 μl
UNEPV1000-P	100 - 1000 μl	5 μl	1000 μl	±6.00 μl	±0.60 %	2.00 μl	0.20 μl	1000 μl
			100 μl	±3.00 μl	±3.00 %	0.60 μl	0.60 μl

Tip Compatibility

Item#	Volume Range	Racked Filter Tip	Racked Filter Tip, Low Retention	Bulk Filter Tip	Bulk Filter Tip, Low Retention	Racked Standard Tip	Bulk Standard Tip	Other
UNEPV0010-P	0.5 - 10 μl	UNUFT010UL	UNUFT010UL-LR	NA	P10001	P10117	T10UL-N	P10002
								Low Retention, Extended Tip
UNEPV0050-P	5 - 50 μl	UNUFT0200UL	UNUFT0200UL-LR	P11005	P10003	P10111	T200UL-Y	T200UL-N
		P11033						Bulk, Standard, Natural
UNEPV0300-P	30 - 300 μl	NA	NA	NA	P10005	NA	NA	NA

UNEPV1000-P	100 - 1000 μl	UNUFT01000UL	UNUFT01000UL-LR	P11007	P10006	P10113	T1000UL-B	T1000UL-N
		P11037						Bulk, Standard, Natural
